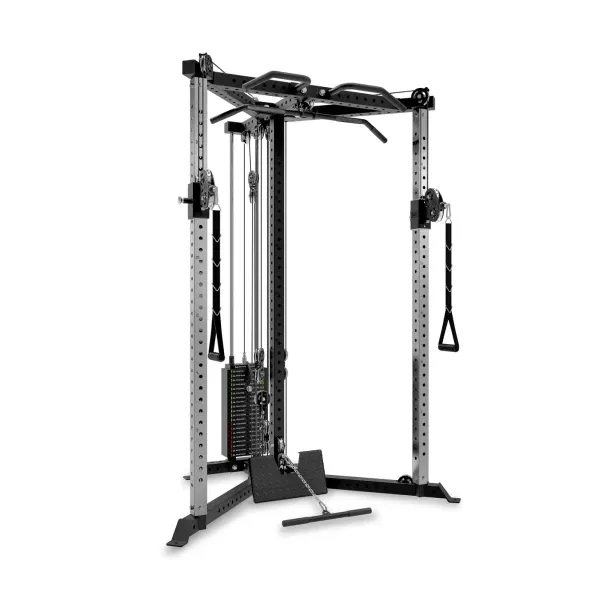

All-in-One Trainer

The Bells of Steel All-in-One Trainer squeezes a functional trainer, a lat pulldown/low row station, and a squat stand into a single roughly 4’ x 4’ footprint. The true 1:1 center pulleys are built for heavy rows and pulldowns, the 2:1 side pulleys handle lighter isolation work like curls and pushdowns, and the 2.3” x 2.3” uprights (5/8” holes) double as a squat stand once you add j-cups – they’ll also take Bells of Steel’s 60mm rack attachments (Y-Dip, Seal Row Pad, and more). It ships in either a plate-loaded configuration (2” Olympic plates, user-supplied) or with a 210 lb selectorized weight stack in 10 lb increments, rated to 300 lbs.

Garage Gym Reviews scores it 4.2/5 and calls it a legitimate compact stand-in for several separate machines, and hands-on owners echo that on GymRadar and r/homegym – the aluminum pulleys pull smoothly with no grinding or wobble even loaded up, and the combo genuinely replaces a rack, a Body-Solid GFT100-style functional trainer, and a lat/row tower for less than buying those separately. The honest tradeoffs show up in build quality and assembly: one detailed owner review reports tolerances tight enough that washers had to be left out and some bolts couldn’t be fully snugged down, the powder coat chips easily at contact points, and the rack portion is shallow enough that spotting a bencher or doing incline work is tight. Cables and pulleys also carry only a 90-day warranty against the frame’s limited lifetime coverage.

At its price point, it’s a strong value pick for a solo garage or basement gym that needs a rack and cable station in one purchase rather than a dedicated setup like a rack paired with a Rogue CC-1 Cable Crossover. Budget for two-person assembly (150-180 minutes) and buy separate floor-bolting hardware – it isn’t included, even though Bells of Steel requires bolting down the unit before barbell use.

Buying guide

Best GHD for a Home Gym — July 2026

Loading	Plate-loaded version accepts 2" Olympic plates only (user-supplied)
Assembly	Ships unassembled in 10 boxes; ~150-180 min, two-person assembly recommended; must be bolted to floor (hardware not included)
Uprights	2.3" x 2.3" (60mm x 60mm), 5/8" holes; compatible with Bells of Steel 60mm rack attachments
Warranty	Limited lifetime on frame; 90-day on cables and pulleys
Footprint	54.6" L x 59" W x 81" H (approx. 4' x 4' corner-optimized)
Pull ratio	Center pulleys 1:1 (heavy rows/pulldowns); side pulleys 2:1 (isolation work)
Construction	Reinforced steel frame; premium aluminum pulleys; heavy-duty cables
Weight stack	210 lb selectorized stack, 10 lb increments (weight-stack version)
Weight capacity	300 lbs rated cable capacity
Ceiling clearance	88" required for assembly

What is a Machine?

What a strength machine is

A strength machine guides the resistance along a fixed path so you can train a movement safely, often without a spotter. The main types: selectorized (pick weight with a pin), plate-loaded (add your own plates for a heavier ceiling and better feel), and functional trainers / cable machines (adjustable pulleys for dozens of exercises).

Machines vs. free weights

Machines shine for isolation, safety, and high-rep hypertrophy, and for training hard alone. Free weights build more stabilizer strength and carry over better to sport. Most well-rounded home gyms use a rack and barbell as the core and add one machine — often a cable/functional trainer or a lat-pulldown/row — to fill the gaps.

The sub-types worth knowing

“Machines” covers several categories that barely compete with each other: GHDs for hamstring and posterior-chain work, belt squats for loading the legs without the bar on your back, leg press / hack squat combos for heavy quad volume, reverse hypers for posterior-chain work and lower-back decompression, cable towers and functional trainers for pulling movements, and row machines. Pick the one that fills a gap in what your rack and barbell already do. Almost nobody needs two.

Space and standalone vs. rack-mounted

Most of these come in a standalone version and a cheaper rack-attachment version. The attachment saves floor space and money, but often gives up stability or range of motion — a tradeoff worth checking on the specific product rather than assuming, since it varies a lot between designs.

A note on ratings

Machine listings frequently show a manufacturer’s own on-site rating, which runs high (4.7–5.0 is typical) and sometimes pools reviews across a whole product family rather than the exact configuration you’re buying. Where we have independent hands-on coverage, our summaries anchor to that instead, and say so on the product page.

How it compares

	All-in-One Trainer	Arcadia™ Functional Trainer	Adonis™ Cable Tower	Cable Tower
GymRadar rating		5.0/5	4.89/5	4.35/5
Price		$2,199.99	$1,999.99	$434.99
Loading	Plate-loaded version accepts 2" Olympic plates only (user-supplied)
Assembly	Ships unassembled in 10 boxes; ~150-180 min, two-person assembly recommended; must be bolted to floor (hardware not included)
Uprights	2.3" x 2.3" (60mm x 60mm), 5/8" holes; compatible with Bells of Steel 60mm rack attachments
Warranty	Limited lifetime on frame; 90-day on cables and pulleys		Lifetime frame; 1-year parts
Footprint	54.6" L x 59" W x 81" H (approx. 4' x 4' corner-optimized)		54.9" L x 45.5" W x 92.1" H (approx.)	< 2.5 x 2.5 ft
Pull ratio	Center pulleys 1:1 (heavy rows/pulldowns); side pulleys 2:1 (isolation work)
Construction	Reinforced steel frame; premium aluminum pulleys; heavy-duty cables		3x3" upright, 1" hole spacing, 11-gauge steel, laser-cut robot-welded frame, metallic black powder coat
Weight stack	210 lb selectorized stack, 10 lb increments (weight-stack version)			110 / 210 lb or plate-loaded
Weight capacity	300 lbs rated cable capacity		450 lbs max (weight stack/plates + band resistance); plate-loaded horns rated to 360 lbs alone
Ceiling clearance	88" required for assembly

Reviews by source

Expert	3.67/5	1 reviews
Retailer	4.8/5	78 reviews

The Bells of Steel All-in-One Trainer packs a functional trainer, lat pulldown/low row station, and squat stand into a single roughly 4’ x 4’ footprint, and reviewers consistently credit it for delivering on that combination in a tight garage or basement. Its standout dimension is functionality: true 1:1 center pulleys handle heavy rows and pulldowns while 2:1 side pulleys cover lighter isolation work, and Garage Gym Reviews, GymRadar, and hands-on YouTube reviewers alike treat it as a legitimate stand-in for several separate machines. The weakest dimension is build quality – a GymRadar owner review reports assembly tolerances tight enough that washers had to be omitted and some bolts couldn’t be fully tightened, plus a powder-coat finish that chips easily, and the rack portion is shallow enough to limit spotting or incline-bench use. Garage Gym Reviews’ independent 4.2/5 and largely positive r/homegym owner reports make this a strong value pick for a solo, space-constrained home gym, with build quality and assembly the main things to budget patience for.

+Functionality: true 1:1 center pulleys plus 2:1 side pulleys cover both heavy back work and lighter isolation exercises in one station (Bells of Steel product page, GymRadar owner review)
+Versatility: 2.3" uprights double as a squat stand and accept Bells of Steel rack attachments (Y-Dip, Seal Row Pad, dip bars, landmine) (Bells of Steel product page)
+Build quality: aluminum pulleys pull smoothly with no grinding, sticking, or wobble even under load, feeling noticeably smoother than budget cable stacks (GymRadar owner review)
+Value: roughly 4' x 4' footprint replaces a rack, functional trainer, and lat/row station in one purchase, cheaper than buying those separately (Garage Gym Reviews, r/homegym)

−Build quality: assembly tolerances run tight enough that washers had to be left out and some bolt ends couldn't be fully tightened (GymRadar owner review)
−Build quality: powder-coat finish chips easily at contact points (GymRadar owner review)
−Durability: cables and pulleys carry only a 90-day warranty against the frame's limited lifetime warranty (Bells of Steel product page)
−Functionality: rack portion is shallow, leaving little room for a spotter behind a bencher or for incline bench work (GymRadar owner review)
−Value: floor-bolting hardware isn't included even though the manufacturer requires bolting down for safe barbell use, an added cost/hassle at setup (Bells of Steel product page, Garage Gym Reviews)
