Arcadia™ Functional Trainer

Name: Arcadia™ Functional Trainer
Brand: REP Fitness
Rating: 5.0 (7 reviews)

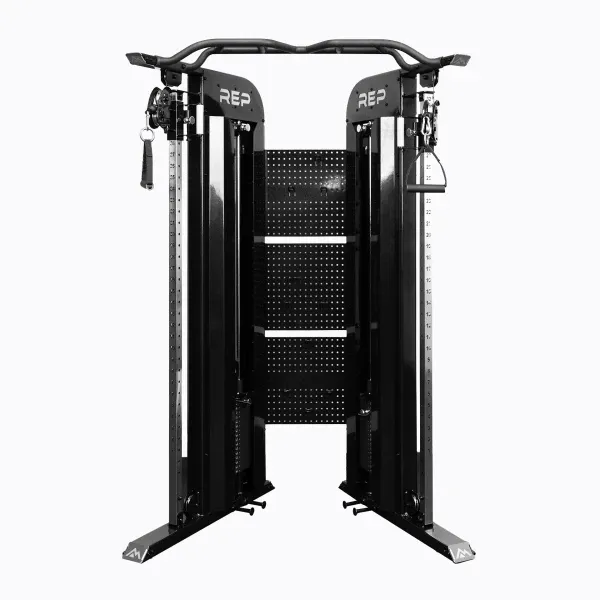

The Arcadia is REP’s first functional trainer engineered in-house from the ground up, borrowing the trolley and pulley componentry from the brand’s Ares 2.0 and Athena line rather than sourcing off-the-shelf parts. Dual weight stacks run 170 lb per side standard (2:1 ratio, so 85 lb usable) across 32 cable positions, with an optional 220 lb per-side upgrade for lifters who expect to outgrow the base stack on rows and pulldowns. Garage Gym Reviews scores it 4.6/5 and its video review calls the aluminum pulleys and brass-bushed trolleys some of the smoothest in the category at this price, aided by a Life Fitness-style 5 lb micro-adjuster weight that lives permanently on the stack.

At $2,199.99 it undercuts or matches similarly built rivals like the Titan Fitness Functional Trainer and Inspire FT1 on componentry, according to Garage Gym Reviews’ side-by-side comparison, though REP’s own larger FT-5000 2.0 offers more stretch between the two stacks for buyers who want to train two people side-by-side or need a wider working envelope. The trade-off for the compact 55.3”-wide, 35.8”-deep footprint is exactly that narrower stretch, and reviewers consistently flag assembly as a long, easier-with-two-people job. The stock unit also has no integrated foot bracing for seated rows — one r/homegym owner built a DIY footplate to brace against — so buyers doing a lot of seated cable work may want a flat bench or aftermarket footplate on hand.

Buying guide

Best GHD for a Home Gym — July 2026

Depth	35.8"
Height	80.8" (78" with inverted multi-grip bar)
Pulleys	Aluminum, 180-degree swivel
Includes	Steel D-handles with nylon straps, multi-grip pull-up bar, 3 laser-cut pegboards (150 lb capacity each)
Rear width	24"
Front width	55.3"
Cable travel	81"
Frame finish	Metallic black powder coat
Weight ratio	2:1
Cable material	Galvanized wire, raw-steel core
Cable positions	32
Trolley height range	13" to 68"
Weight stack (upgrade)	220 lb per side (110 lb usable), +$324.99
Weight stack (standard)	170 lb per side (85 lb usable at 2:1 ratio)

What is a Machine?

What a strength machine is

A strength machine guides the resistance along a fixed path so you can train a movement safely, often without a spotter. The main types: selectorized (pick weight with a pin), plate-loaded (add your own plates for a heavier ceiling and better feel), and functional trainers / cable machines (adjustable pulleys for dozens of exercises).

Machines vs. free weights

Machines shine for isolation, safety, and high-rep hypertrophy, and for training hard alone. Free weights build more stabilizer strength and carry over better to sport. Most well-rounded home gyms use a rack and barbell as the core and add one machine — often a cable/functional trainer or a lat-pulldown/row — to fill the gaps.

The sub-types worth knowing

“Machines” covers several categories that barely compete with each other: GHDs for hamstring and posterior-chain work, belt squats for loading the legs without the bar on your back, leg press / hack squat combos for heavy quad volume, reverse hypers for posterior-chain work and lower-back decompression, cable towers and functional trainers for pulling movements, and row machines. Pick the one that fills a gap in what your rack and barbell already do. Almost nobody needs two.

Space and standalone vs. rack-mounted

Most of these come in a standalone version and a cheaper rack-attachment version. The attachment saves floor space and money, but often gives up stability or range of motion — a tradeoff worth checking on the specific product rather than assuming, since it varies a lot between designs.

A note on ratings

Machine listings frequently show a manufacturer’s own on-site rating, which runs high (4.7–5.0 is typical) and sometimes pools reviews across a whole product family rather than the exact configuration you’re buying. Where we have independent hands-on coverage, our summaries anchor to that instead, and say so on the product page.

How it compares

	Arcadia™ Functional Trainer	Arcadia™ Max Functional Trainer	Adonis™ Cable Tower
GymRadar rating	5.0/5	4.6/5	4.89/5
Price	$2,199.99	$2,699.99	$1,999.99
Depth	35.8"	44"
Height	80.8" (78" with inverted multi-grip bar)	87.6"
Pulleys	Aluminum, 180-degree swivel	Aluminum
Includes	Steel D-handles with nylon straps, multi-grip pull-up bar, 3 laser-cut pegboards (150 lb capacity each)	Two knurled steel D-handles, integrated multi-grip pull-up bar, four full-length pegboards
Rear width	24"	32.9"
Front width	55.3"	75.5"
Cable travel	81"	93.4"
Frame finish	Metallic black powder coat	Metallic black or white powder coat
Weight ratio	2:1	2:1
Cable material	Galvanized wire, raw-steel core
Cable positions	32	36
Trolley height range	13" to 68"	~12.8" to 77.5"
Weight stack (upgrade)	220 lb per side (110 lb usable), +$324.99	270 lb per side (135 lb usable), +$329.99
Weight stack (standard)	170 lb per side (85 lb usable at 2:1 ratio)	220 lb per side (110 lb usable at 2:1 ratio)

5.0/5 · 7 GymRadar reviews

Reviews by source

Expert	5.0/5	7 reviews
Retailer	4.9/5	112 reviews

REP’s first in-house-engineered functional trainer borrows the trolley and pulley componentry from the Ares 2.0 and Athena line and packs it into a genuinely compact footprint. Build quality is the standout dimension — Garage Gym Reviews calls it one of the smoothest functional trainers on the market, aluminum pulleys and brass bushings throughout, oversized pop-pins, knurled handles, and a 5 lb micro-adjuster borrowed from Life Fitness’ commercial units. Versatility is the weakest spot: the compact upright means a narrower stretch between the two stacks than bigger rigs like REP’s own FT-5000 2.0 offer, so two people training side-by-side have less room to work with. Assembly takes a full afternoon (better with two people), and buyers should expect to budget for the 220 lb stack upgrade if they plan to grow into heavier rows and pulldowns.

+Build quality: aluminum pulleys with brass bushings and smooth bearings throughout make this "one of the smoothest functional trainers" Garage Gym Reviews' Coop has used, smoother in his account than a commercial Free Motion dual cable cross (Garage Gym Reviews video)
+Functionality: a 5 lb magnetic micro-adjuster weight sits permanently on the stack with its own pop pin, borrowed from Life Fitness' commercial trainers, so lifters can fine-tune load without handling loose add-on plates (Garage Gym Reviews video, REP product page)
+Value: at $2,199.99 with 32 cable positions and a 2:1 ratio it undercuts or matches comparably built rivals — Garage Gym Reviews' Coop directly compares it to the Titan Fitness Functional Trainer, Inspire FT1, and Bells of Steel's functional trainer and rates the Arcadia ahead of all of them on componentry for the price (Garage Gym Reviews video)
+Build quality: hot-rolled steel weight plates, galvanized cable with a raw-steel core, laser-cut (not sticker) badges, and a metallic black powder coat matching REP's rack line (REP product page, Garage Gym Reviews page)
+Functionality: knurled steel D-handles and a knurled trolley grip stand out versus the plain rubber grips most competitors use at this price point (Garage Gym Reviews video)

−Versatility: Garage Gym Reviews' main criticism is that the compact upright limits usable width between the stacks versus larger trainers, so two people working out simultaneously have less room, and taller/wider setups may want REP's bigger FT-5000 2.0 instead (Garage Gym Reviews page, Garage Gym Reviews video)
−Functionality: assembly is lengthy and multiple sources — the retailer listing and r/homegym threads — note it goes faster with a second person; one r/homegym post is specifically someone looking for an assembly walkthrough video
−Value: the standard 170 lb per-side stack (85 lb usable at 2:1) is adequate for most lifters but advanced or heavy lifters will likely want the 220 lb upgrade (+$324.99), pushing the realistic buy-in past $2,500 (REP product page, Total Fitness USA listing)
−Versatility: the stock unit has no integrated foot bracing for seated cable rows — one r/homegym owner built a DIY footplate after struggling to brace against a flat bench (r/homegym via pullpush)
−Durability: no long-term ownership data surfaced in this pass — Coop's review is from launch, and community threads to date are mostly pre-purchase comparison questions rather than months-later follow-ups
